Control Engineering, AMS/CQI9

State-of-the-art control technology is a standard feature of THERMCONCEPT furnaces. Individual solutions are available for more complex processes.

  • Multi-zone and cascade control
  • Touch Controller for the majority in standard
  • PLC
  • Documentation according to AMS 2750 E and CQI 9
  • Remote maintenance systems
  • Heating control via DC power supplies
  • Frequency controlled drive control
  • Drive control for linear drives
  • Switchgear construction according to customer-specific factory standards and guidelines

Interested with This Product?

Program Controller - Jumo Dicon Touch

  • Can be used as programmer, controller/Recorder combination, multi-zone controller or cascade controller
  •  Tabular program input via touch panel function
  •  Clear colour display
  •  As a program controller with 10 programs, each with 50 segments, freely programmable
  •  4 freely configurable thermocouple inputs
  •  USB connection for removable media, integrated flash memory
  •  Ethernet communication optional

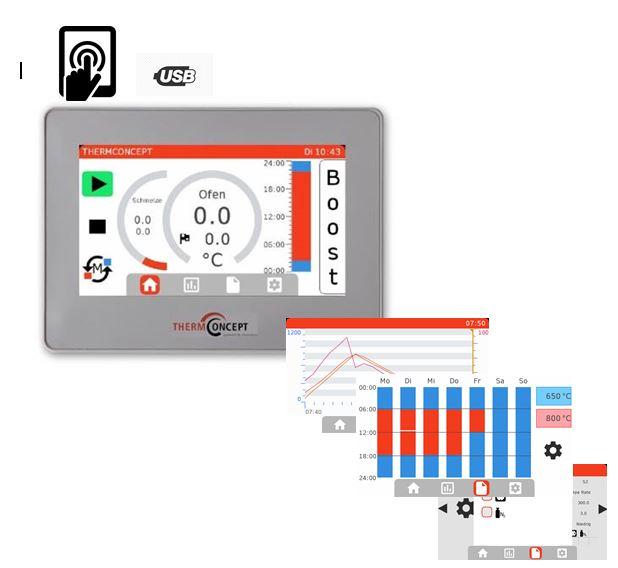

Program Controller - New Touch Controller TCP 400

Performance features Touch Panel Controller TCP 400

4.3″ touch panel
480×272 pixels, resistive surface, operation with gloves possible
Clear and intuitive operation, largely language-neutral via pictograms, for up to 3 heating zones + batch display or batch control,
Program controller with 10 programs and 24 segments each
Individual program names in plain text
Graphical view of the program progress
Real time display with date
Timer with max. 20 days lead time
Up to 5 program-controlled additional functions possible with corresponding extensions
Display of up to 3 operating states (depending on furnace model and version)
Several languages selectable
History of the last 10.5h on the display
Ethernet interface

Program Controller - Eurotherm 3208/3216

  •  1 program with 8 segments (4 ramps and 4 hold times)
  •  1 extra function
  •  RS 232 and RS 485 interfaces and iTools software as option
  •  Multi-zone control optional

Program Controller - Eurotherm 3508/3504

  •  10 programs with a total of 500 segments freely programmable
  •  7-day preselection clock
  •  Up to 5 extra functions
  •  Interfaces RS 232, RS 422, RS 485 and Ethernet as well as iTools software as option
  •  Multi-zone control optional

Program Controller - Eurotherm 3216I/32H8I

  •  Can be used as temperature limiter or adjustable temperature selection limiter
  •  Alarm message as plain text
  •  Can also be used as a permanently mounted temperature display, optionally with interfaces for documentation via iTools software

Program Controller - Eurotherm Nanodac

  •  Can be used as program controller, controller/Recorder combination, multi-zone controller or cascade controller
  •  Clear colour display
  •  As a program controller with 100 programs, each with 25 segments, freely programmable
  •  4 thermocouple inputs freely configurable
  •  USB connection for removable media, integrated flash memory
  •  Ethernet Communication
  •  Incl. software for programming, control and documentation

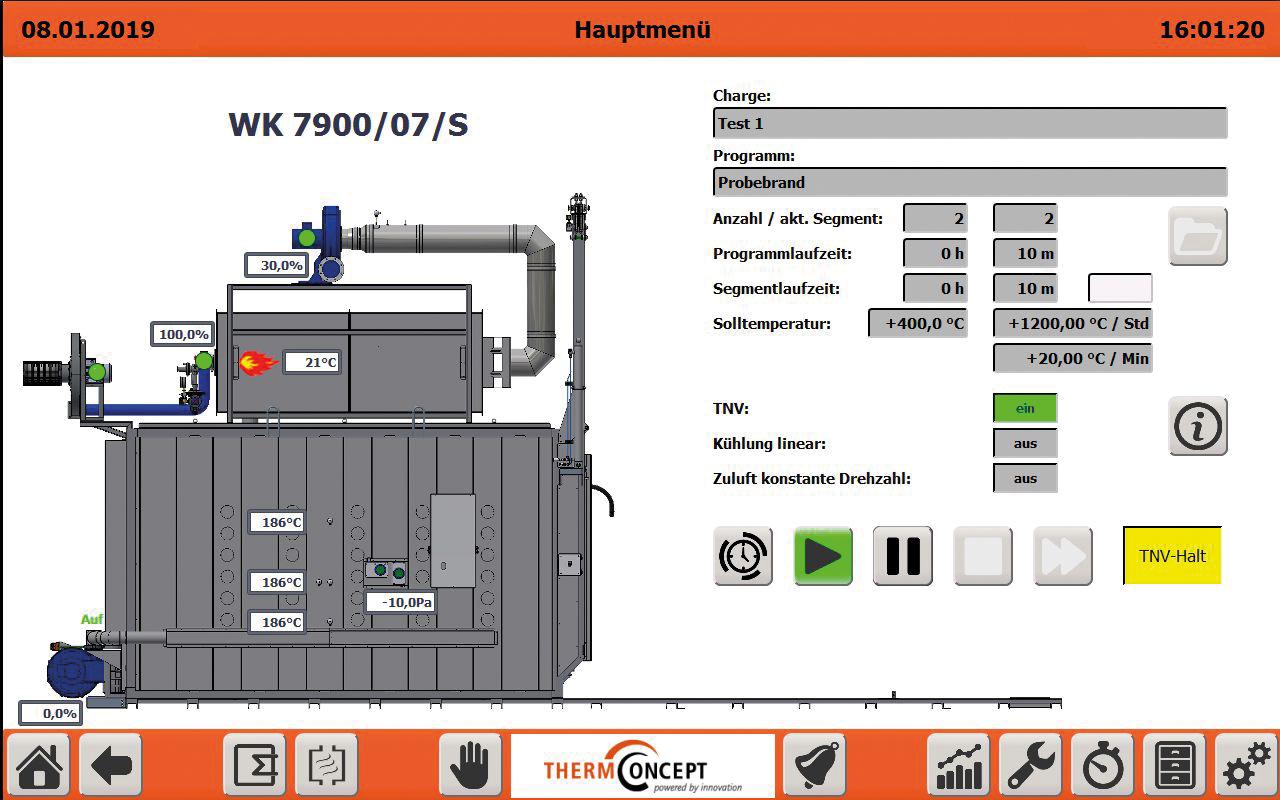

SPS Controls and User Interfaces

  •  PLC Siemens S7
  •  Individually adjusted and programmed for furnace and process
  •  Customized user interfaces
  •  Optimal solution for systems with a wide range of functions
  •  Detailed process messages with full text output (multilingual possible)
  •  Tabular program input via touch panel function
  •  Clear colour display

Documentation

The documentation of all process-relevant data plays an important role as proof of compliance with heat treatment regulations and for quality assurance. THERMCONCEPT offers a range of options for this purpose.

  •  Eurotherm iTools in conjunction with Eurotherm controller Connection to a PC for programming, monitoring and documentation
  •  Point and line paperless recorder with up to 6 channels for irretrievable protocols
  •  Digital recorders with USB interfaces, Ethernet, memory cards, with up to 18 channels
  •  Process standard compliant recorders like e.g. Eurotherm Aerodac 6100A 6180A, 6100XIO, Nanodac

Control and Evaluation Software

  •  Eurotherm iTools for professional process control and documentation of temperature-time profiles and batch data
  •  Simultaneous management of several furnaces possible
  •  Control of the furnaces from a central PC or via a network
  •  Great ease of use
