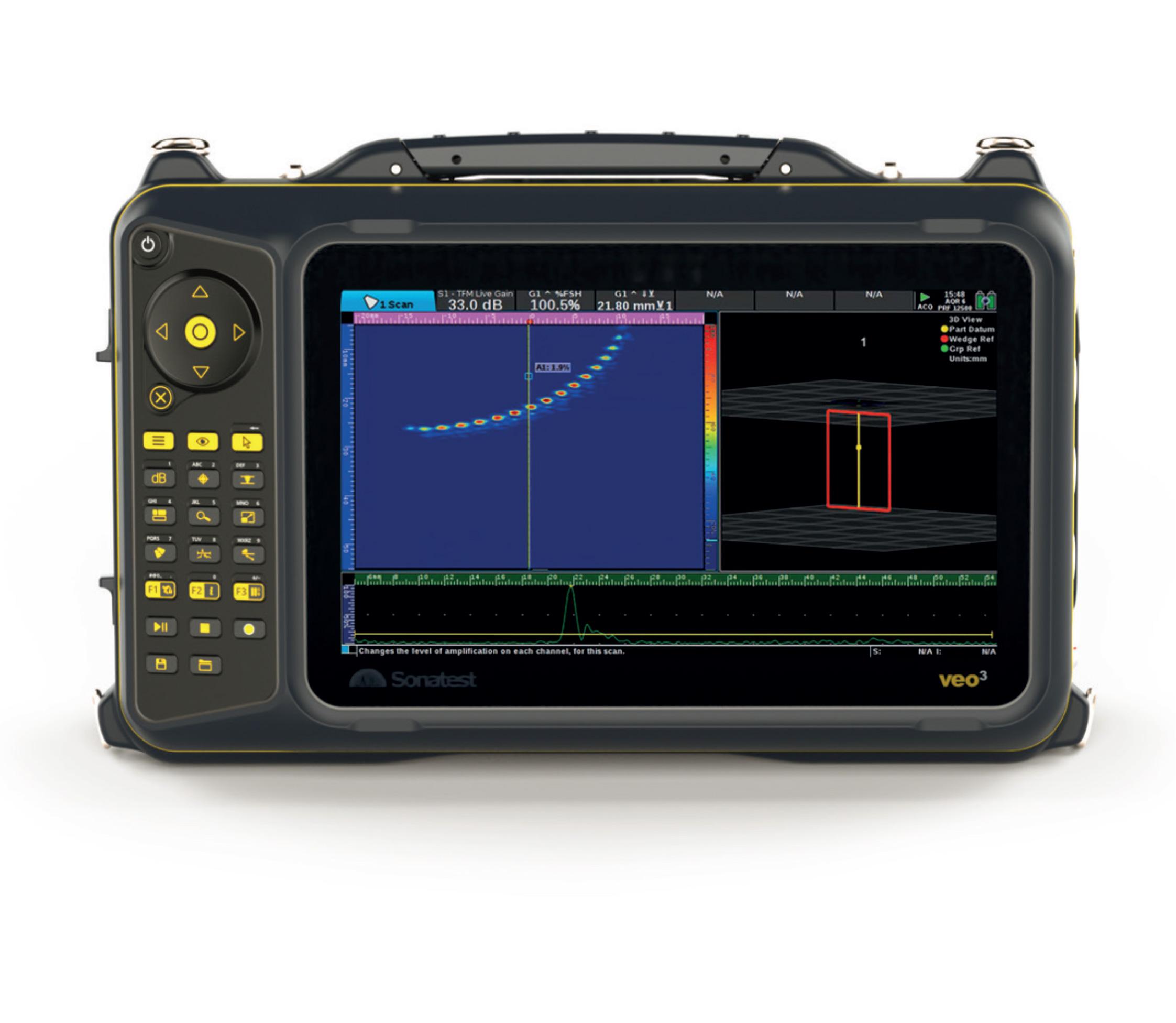

Key design elements of the Veo3 are user and performance focused. Based on superior and innovative digital technology and its live concurrent multi-scan / multi-technique capabilities, the Veo3 truly helps you to inspect with confidence.
The Veo3 multi-techniques allow inspectors to keep inspecting as they always have, with no need to change their current workflow and by doing so, users can benefit from the additional resolution and sizing performance of TFM while carrying out an already approved, trusted and reliable procedure.
| GENERAL | PHASED ARRAY (32:128PR) | UT-TOFD (2PR) | Live TFM |
| Multiscan Quantity | Up to 8 scans | Up to 2 scans (UT & TOFD) | Up to 6 scans |
| Pulsers/Receivers | 32:128PR | 2PR (4 connectors) | Up to 64 elements probe |
| Gain Range | 80dB | 100dB | 80dB |
| Sampling Frequency | 125 MHz @ 12-Bit | 50/100/200 MHz @ 10-Bit | 125 MHz @ 12-Bit (processing 16-Bit) |
| System Bandwidth | 0.2 to 23 MHz | 0.2 to 18 MHz | 0.2 to 23 MHz |
| Max Pulse Rate Frequency | 50,000 Hz | 20,000 Hz | 50,000 Hz |
| Pulse Voltage | 100-50V ActiveEdge© | 400-100V ActiveEdge© | 100-50V ActiveEdge© |
| Focusing Mode | Natural or Constant Depth/Path/
Offset |
na | Focusing in all points TFM |
| S-Scan Resolution | Up to 0. 1° | na | Down to 0.01mm |
| L-Scan Resolution | Down to 1 element or DoubleResolution | na | Down to 0.01mm |
| Max PA Beams (focal laws) | Up to 1024 beams | na | Up to 500,000 Pixels |
|
Tools – Measurements and Wizard |
EXTRACTION BOX, 4 gates/A-Scan, TCG, DAC/Split-DAC |
4 gates/A-Scan, TCG, DGS/ Split DGS, DAC/Split-DAC |
12 TFM algorithms, Up to 4 modes per TFMiTM, EXTRACTION BOX,
4 gates, Velocity, TCG, Amplitude fidelity, up to 20 cursors/view |
| Onboard Scan Plan Tools | Onboard 3D live rendering | Operating Time | 6 hours (hot swappable batteries) |
| Onboard Reporting Tools | PDF auto-report, Export data to CSV
file, Save screen capture |
Power Input | AC 110V/240V @ 50 Hz/60 Hz |
| Onboard PDF Reader Integrated | Ability to load and read and PDF documents | Unit Dimensions | 115 x 225 x 355 mm (4.52 x 8.6) |
| Online Help Calibration | ACTIVE help genius for parameter optimisation procedures, reports | Weight | 5.1 kg (11 lb) no battery, 460g |
| Standards | ISO18563 (EN16392) & EN12668 | Environmental Rating | Designed for: IP66 |
